Screen Replacement Impossibility
While trying to teardown the MacBook Air Early 2015 display, I discovered it was made impossible to replace just the screen. You're forced to replace the entire head assembly—attempting to take the screen out will cause inevitable damage. In my case, a good screen got cracked (I just wanted the LED backlighting).
Read more
The Anti-Repair Design
Apple’s Early 2015 MacBook Air display assembly is a prime example of anti-repair design. The LCD panel is bonded to the front glass with adhesive that makes non-destructive separation virtually impossible.
What I Learned
- The screen, glass, and backlight are essentially one fused unit
- Apple expects you to replace the entire display assembly (~$400-600)
- Even professional repair shops struggle with this model
- My attempt to salvage just the LED backlight resulted in a cracked (previously working) screen
The Takeaway
If you’re sourcing parts from a MacBook Air Early 2015, treat the display as a single unit. Don’t try to be a hero—I learned that lesson the hard way.
Visual Evidence
Here’s exactly what happens when you try to “just replace the screen”:

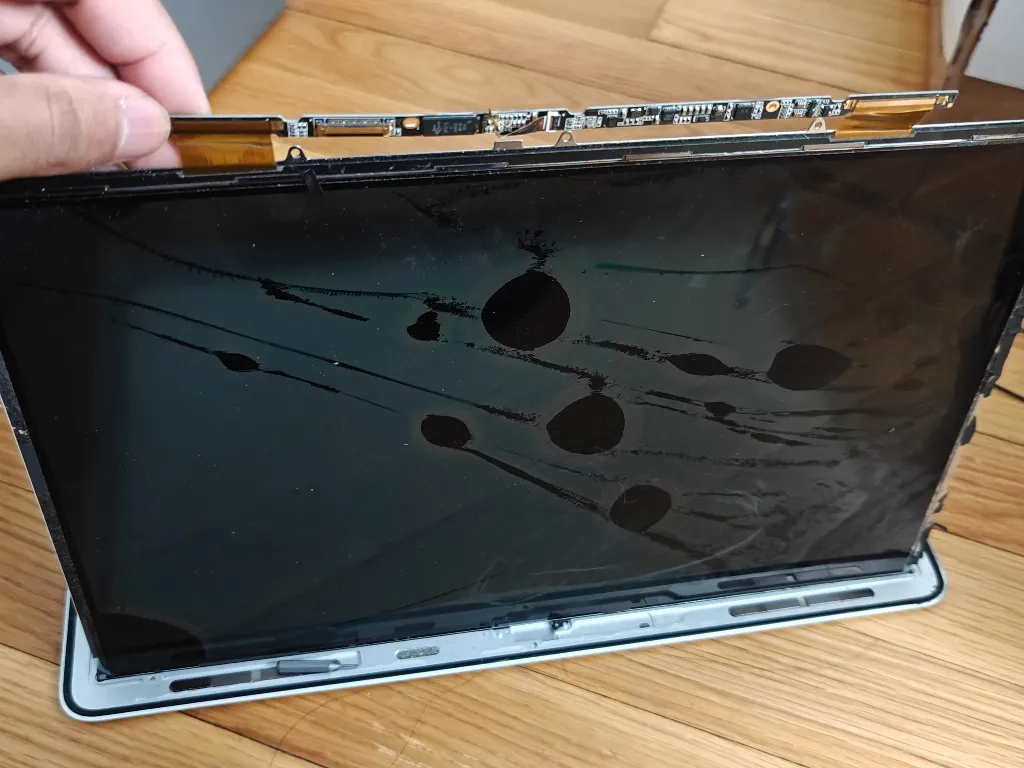

Figure 1: The inevitable result of attempting to separate the layers.
Figure 2: The pressure required to separate the bezel destroys the LCD matrix.
The Layers
Once destroyed, you can see the layer construction. I did manage to salvage the backlight assembly (bottom), but at the cost of the panel itself.

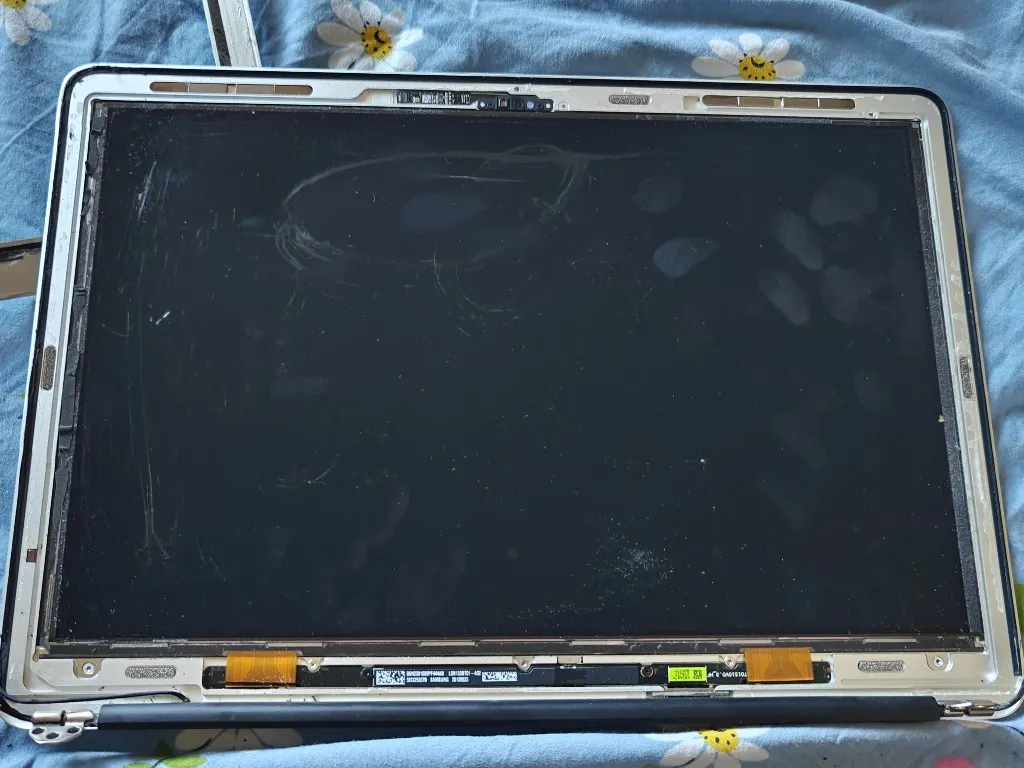

Figure 3: With the LCD removed (and broken), the backlight assembly remains.

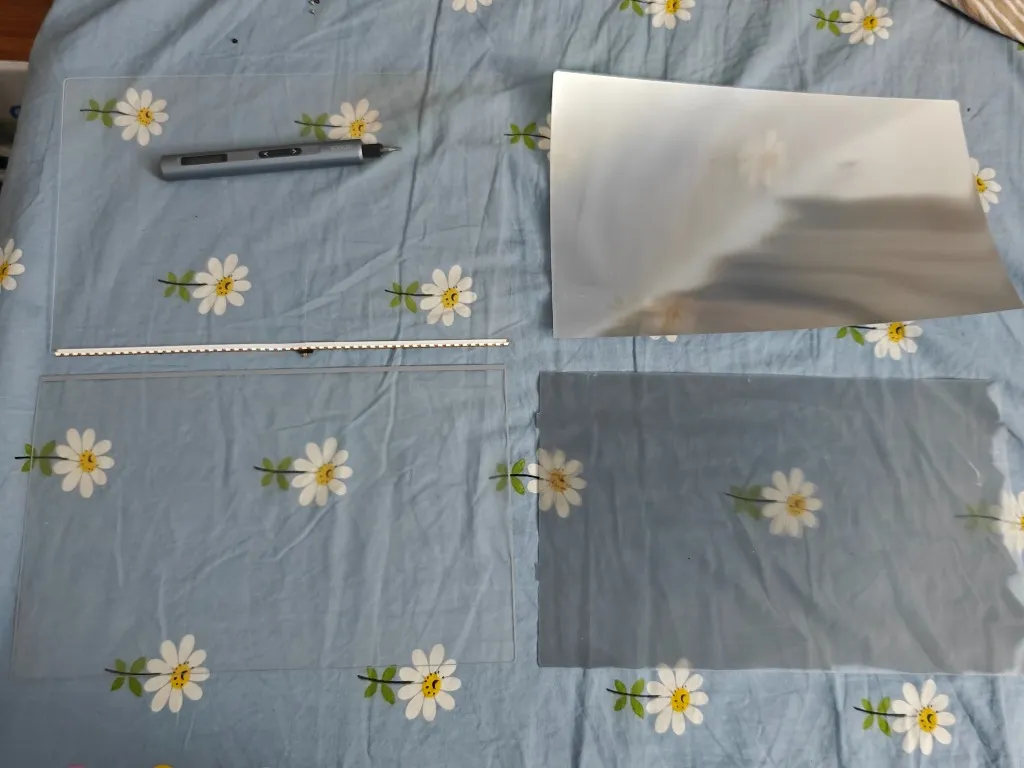

Figure 4: The diffuser sheets sorted out. Useful for other projects, but expensive scrap.
